Game Engine Ported to Xbox360

Forgot to mention that I ported the game engine to Xbox360 last week.

22-08-2013 8-41-05 PMJoy!





Posted in TheGame | Leave a comment

MonoGame – Touch resolution issue in iOS

Encountered another issue similar to the ViewPort dimensions initialisation race-condition issue for iOS I blogged about previously. The fix was inspired by this discussion. The issue seems to date back to January.

22-08-2013 2-38-17 PM

The symptom is that touch events register are scaled up (or down) because the touch panel dimensions are not the same as the actual screen dimensions.

Not sure if this is 100% a bug because I can imagine a touch screen might sometimes have more or less resolution than a screen and when dealing direct with the hardware I have encountered this behaviour. The convenient solution is to start at the actual screen size by default.

I’ve resolved all of these race conditions by doing what I said I didn’t want to and placed a call to my engine initialisation code in Game::LoadContent();.

Some platforms seem to have the correct ViewPort after the call to Game::base.Initialize() while others seem to only work it out by Game::LoadContent();.

My experience with MonoGame is getting to the point where I almost feel up to creating a patch for this and the other issues but I see online discussions so I suspect that minds greater and more experienced than me are onto this.

For now they remain a TODO: as I have features to create.

Posted in MonoGame, TheGame | Leave a comment

HEVC(H.265) + UHDTV(4K) – What Does It Mean for IPTV?

Here some updated notes from my research last year into HEVC & UHDTV. I’ve aimed this at a general audience.

HEVC – High Efficiency Video Coding

A new more efficient video compression format is coming that will eventually replace the current standard workhorse H.264/MPEG4-AVC used by online video services.

HEVC (H.265) has been in research and development since 2004 and claims[1,2] to compress 50% better than H.264-AVC.

13-08-2013 12-09-28 PM
Looks like we potentially have a new law, ‘Compression improves to halve video file size every 10 years‘.

So with HEVC/H.265 current video formats could require half the bit-rate to stream or, to think of it another way, download at twice the speed.

UHDTV – Ultra High Definition Television

There is also a new digital video format and screen size on the horizon, UHDTV or ‘4K’.

‘4K’ is a confusing term because there are a lot of them, which is why for television, UHDTV is technically the correct term. Marketing however will dictate if the snappier ‘4K’ ends up being used instead.

Format Resolution Display aspect ratio Pixels
4K Ultra high definition television 3840 × 2160 1.78:1 8,294,400
Digital Cinema Initiatives 4k (native resolution) 4096 × 2160 1.90:1 (256:135) 8,847,360
DCI 4K (CinemaScope cropped) 4096 × 1714 2.39:1 7,020,544
DCI 4K (flat cropped) 3996 × 2160 1.85:1 8,631,360
Academy 4K (storage format) 3656 × 2664 1.37:1 9,739,584
Full aperture 4K (storage format) 4096 × 3112 1.32:1 12,746,752

(Source Wikipedia)

UHDTV is equivalent to four Full HD (1080p) screens.

13-08-2013 12-18-26 PM

Now the amount of information you need to compress quadruples when you double the width and height. size*2*2

… but HEVC halves the file size from H.264.  size/2

So we get  size*2*2/2 = size*2

So the UHDTV format compressed with HEVC will only end up being twice the size instead of four times the size.

Let’s look at these two impacts in more detail.

“Video will use 50% less bandwidth”

This means that the delivery of current SD and HD video will be easier and cheaper.

Video will consume less bandwidth and consume less space on CDNs.

This will allow IPTV services to penetrate deeper into existing markets and enter markets where the network was previously too slow.

In other words, less buffering and speedier downloads for those currently capable while those with borderline network speeds will be able to sustain a stream, where before they could not.

It takes time for mainstream industry to move, so I’d bet that where we first see the impact of this technology will be illegal downloads (and yes, porn [SFW]) which will have file sizes made smaller or kept the same but delivered at a higher quality.

This means it’s more important than ever that content providers and distributors set the price to effort ratio for legitimate vs illegal content acquisition correctly.

“UHDTV will only need twice the bandwidth of Full HDTV”

This will accelerate the practical benefit of UHDTV enabled devices.

Nielsen’s Law dictates that bandwidth for users increases 50% every year so if 1080p streaming is practical now, in theory, in a year from now, so will UHDTV.

There are commercial services (Netflix,Ustream,VUDU and more) currently offering 1080p streaming, so the clock is ticking.  Some have started early. (ODEMAXSony)

As for seeing UHDTV on Cable or Free to Air services, I’m going to go out on a limb here and suggest that..

  • It takes more than a year to table and ratify a broadcasting standard.
  • The TV manufacturers will then need to come to the party and implement it.
  • Enough UHDTV capable TVs need to be sold for there to be a large enough commercial audience.
  • Broadcasters will need to equip themselves for it.
  • Content creators will need to create content for it. Existing UHD content will need to be transsized.

In my opinion, I don’t think we will see UHDTV in a commercially meaningful way in Cable or Free To Air broadcasts till the end quarter of this decade, at the earliest.

So what is my point?

UHDTV TVs and computer monitors are coming. Some  ‘4K’ monitors are already under $1,500.

Plug a PC with a ‘4K’ video card into a ‘4K’ Monitor and you have a workable system.

We are long past online video being ‘postage stamp’ sized.  Online video is now at least as good a quality as what you can get on Free To Air and Cable Television.

But…

UHDTV combined with HEVC means that for the first time, online video will be of a better quality than Free To Air and Cable Television.

I could imagine a Netflix ad campaign for a HEVC +UHDTV service along the lines of the old Trinitron ads. “You are only getting a quarter of the picture, watch TV on Netflix.

Once IPTV set-top boxes are capable of HEVC and UHDTV then “HDIPTV “could go mass market.

Assuming anybody cares.

Just because we can do 4K does not mean we need it. The end result could be that our videos just get smaller and 4K screens are a flop that nobody wants?

Personally I think the age-old advertising lever of “better quality” will win out. Unlike 3D or ‘Connected’, 4K will make sense to consumers as an easy to understand and tangible quality intrinsic to the screen. 4K has a hyper-real quality that makes a big impression. It will seem a worthwhile purchase.

Let me know what you think. Evidence to the contrary or supportive is more than welcome.

In summary…

If HEVC delivers on its promise, it’s good for online video services.

If UHDTV screens reach mass market, unless you live in Japan, online video delivery services have a good chance of beating and outclassing Free To Air and Cable.

It has already begun.

Exciting times ahead.

Cheers

James McParlane

Posted in IPTV, Rants | 3 Comments

Game Engine Ported to iOS

4-08-2013 8-59-21 PM

It was a little bit of a struggle as I had to create a different pipeline solution for iOS assets. I’m now giving all my projects a separate content pipeline.. for great symmetry!

Posted in TheGame | Leave a comment

Game Engine Ported to OSX

Over the weekend I ported the game engine to OSX.


Posted in TheGame | Tagged | Leave a comment

MakerBot2 Weekend Of Tinkering

The Makerbot 2 is widely acknowledged by the developer community to have a faulty design in key component.

http://www.thingiverse.com/thing:42250

I ordered a print of one from the guy who designed a replacement. I could have printed it and assembled it myself but paid for it as a form or reward/encouragement.

Then I put it in a box for 5 months.

If I ever got into the situation where I could no longer print because the original faulty part had failed, I could fit it and carry on.

This weekend, that happened 🙂

Then I downloaded the latest revision of the fix and printed that 🙂

Posted in MakerBot | Tagged | Leave a comment

A Critical Problem With MonoGame

Seems it’s impossible to in a cross platform manner know what your rendering surface size is actually going to be.

In XNA, in Initialize() you can query the ViewPort dimensions and they will be correct.

Seems that in many other targets you don’t really know this for sure. Most likely it will return 800×480 till you get to LoadContent().

On some devices what you ask for is not what you get.

Some consistency would be nice.

In the meantime I’ve had to give up on semantics and move all my Initialize() code that needs to know the Viewport size (like all of it) out into LoadContent().

Also, beware with the current Xamarin Studio on the Mac. It does not copy and paste properly if you have Windows CRLF ending in your files. It will mess up the end of your paste..





Posted in Uncategorized | Leave a comment

Deploying Directly To An OUYA Using MonoGame/Visual Studio

Deploying Directly To An OUYA

Let’s face it – the Android emulator almost always sucks. It’s perhaps the most broken bit of an otherwise OK development process for Android.

Nothing beats the fidelity of testing on the real hardware but you need to jump through a few hoops first.

For MonoGame with the Visual Studio plugin you can launch directly into the hardware, but there are two gotchas.

  1. You need to change the USB driver for the OUYA to the Google Android SDK ADB (Android Debug Bridge) device so that ADB can interact with it.
  2. Visual Studio/MonoGame will only see devices plugged in when they launch. Plug in your device and make sure it is visible using adb devices from the command line before you start Visual Studio.

Updating The USB Driver

When you run adb devices from the command line and it responds with an empty list…

21-07-2013 11-52-42 AM

…and your device is plugged in, then you will probably need to update the USB driver to be the Android SDK ADB one supplied by Google.

  1. Open Device Manager – Find the OUYA.
  2. Right-Click, Update Driver Software…
  3. Choose “Browse my computer for driver software”
  4. Choose “Let me pick from a list of device drivers on my computer”
  5. Click “Have Disk…” (there may be a step before this similar to “Show All Devices”)
  6. Browse and Select the .INF file %APPDATA%\local\Android\android-sdk\extras\google\usb_driver\
  7. Choose android_winusb.inf
  8. Click ok.
  9. Select the ADB Interface (not the composite one)
  10. Finish the Wizard.

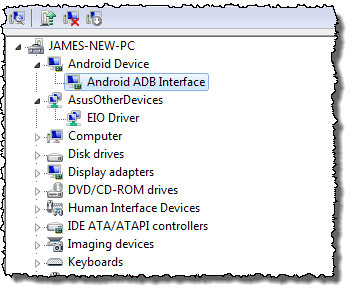

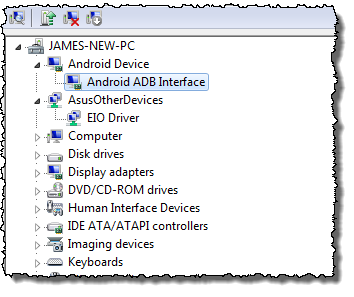

It should now appear as an Android Device with an ADB Interface.

20-07-2013 9-44-36 PM

Running adb devices from the command line shows my OUYAconsole.

21-07-2013 11-52-14 AM





Job Done!

Order is Important

In Visual Studio 2012 if you can’t see your device, try restarting Visual Studio or rebooting..

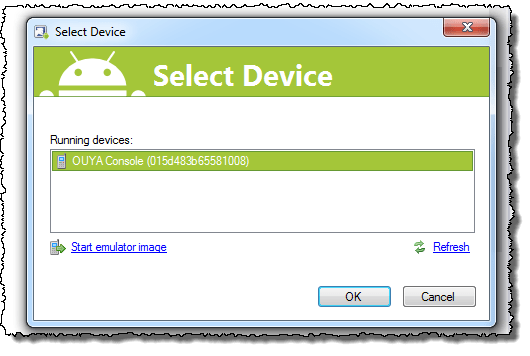

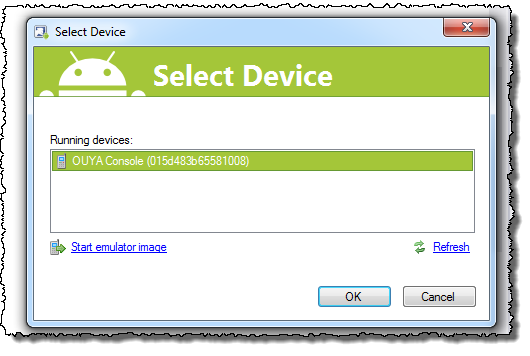

You device should be an option when you F5 or Run/Debug or Deploy from Visual Studio.

20-07-2013 10-29-43 PM

Some Porting Stories From Other Developers

http://ballerindustries.com/2013/05/lessons-from-a-legendary-monogame-android-programmer/

http://monogame.net/news/2013/02/09/porting-armed-ouya

Performance

Out of the box performance for just drawing text, rendering images and playing audio is fine. My unoptimised hexagon vector engine that runs at 60fps fine on my PC won’t get above 10fps on the OUYA.

One thing I might try is using a scaled down 720p render target and blit up to the 1080p of the OUYA,

https://github.com/CartBlanche/MonoGame-Samples/blob/master/RenderTarget2DSample/Game1.cs



Posted in MonoGame, TheGame | Leave a comment

MonoGame OpenGL Has 800×480 Screen During Initialize

There seems to be a workflow issue at the startup of a MonoGame app in Windows using OpenGL.

The solution seems to be to perform your own initialisation on the viewport.

The issue is that during Initialize() your app seems convinced it has an 800×480 display, no matter what you have asked for in your back-buffer.

This is not the behavior in XNA, so I’m declaring it broken in MonoGame OpenGL

When you set your preferred back-buffer dimensions to something like 720p…

graphics.PreferredBackBufferWidth = 1280;
graphics.PreferredBackBufferHeight = 720;

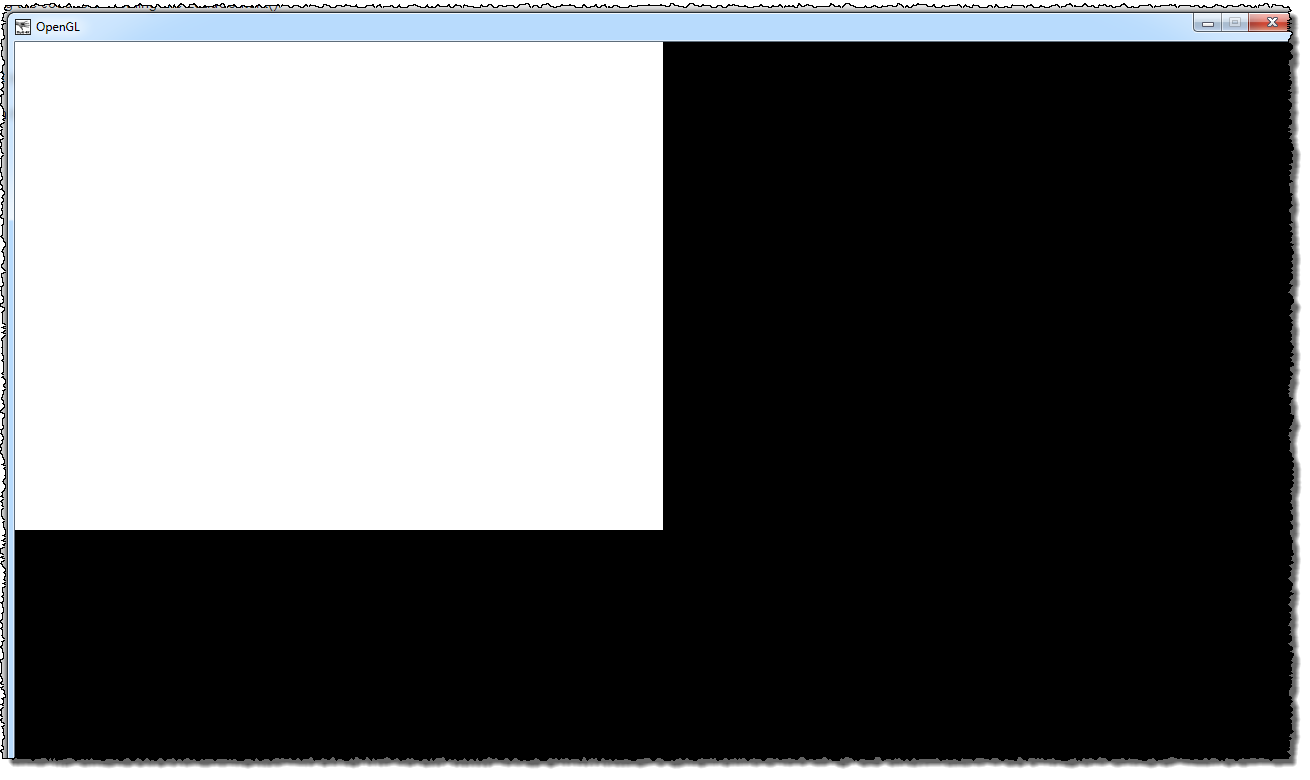

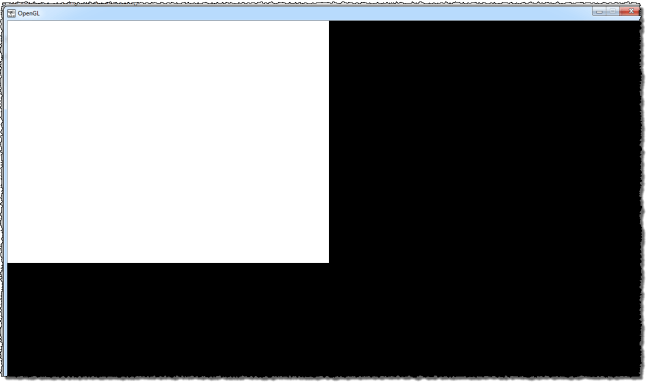

… the window might be that size but what renders for the first few seconds is an 800×480 rectangle in the corner.


My fix is to manually create the viewport. ApplyChanges() seems to not do anything immediately. My assumption is there is a WM_RESIZE message pending from that that will asynchronously, at some point update the viewport.

At some point after Initialize() when the core Update() pump fires up the App seems to recognise that it has a 720p display.

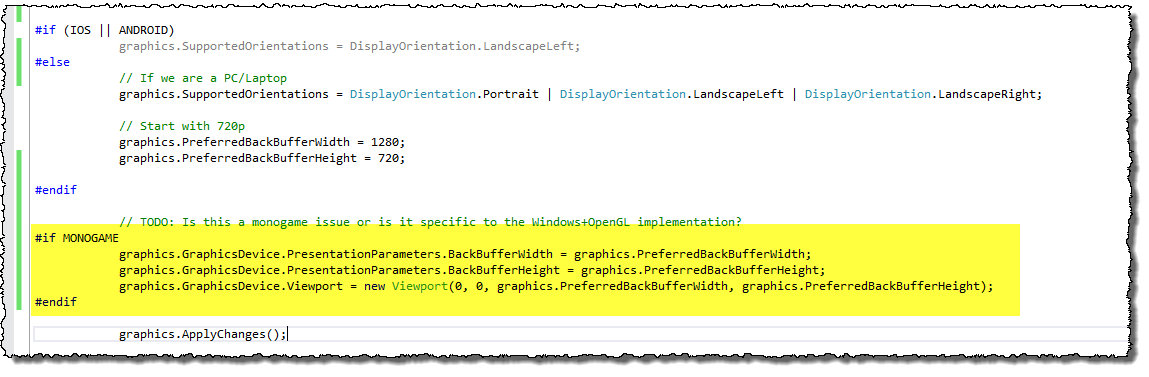

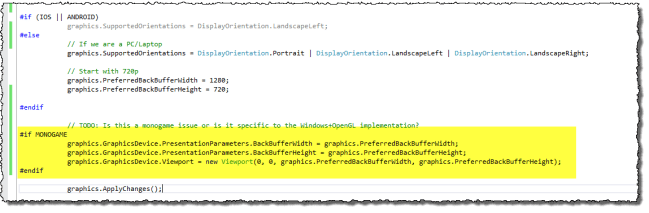

So the bit in yellow is the real magic and resolves it for me. All I am doing is explicitly creating a new viewport. This code crashes in XNA, hence the #ifdef for MONOGAME.


I still get the White rectangle for a fraction of a second at the start, but any code in Initialize() that asks for the viewport size, gets the right size.

Posted in C#, MonoGame, TheGame | Tagged | 2 Comments

The Game – Progress Report #11

I have an OpenGL port of our game engine… it coughs blood but it’s mostly there.

11-07-2013 10-37-24 PM

Posted in TheGame | Leave a comment
